PMC – Xtreme Air Purge Spray & Pour Gun


Extreme Air Purge Gun  | This economically priced gun weighing a mere 2.4 lbs (1.1 kg) is one of the lightest and smallest plural component spray guns on the market today. The Chamber, PCT, Screen Screw Parts, Coupling Block and Check Valves are the same parts used in the proven PMC AP-2 Air Purge Gun.



PMC Xtreme Spray Gun

This is the latest addition to the PMC equipment line, the Xtreme Spray Gun. Aside from its bold red color, other features include;

  • Improved rebuildable trigger assembly, up to 30% faster
  • Diamond plate mixing chambers
  • Engineered resin side seal use in NASA
  • 9 Chamber sizes cover all output requirements
  • Spray 30-50 sets of materials with the same chamber and seals*

*results may vary depending on material

Q; What are the key differences between the AP-3 and the AP-3 Extreme?

A:  With the extension of your hand PMC took spray to the extreme

  • Extremely light weight. Contoured light weight design allows the operator to spray all day and night.
  • More air purge to the extreme. The Xtreme features a newly designed air cylinder with 3 piece internal check valve for an extreme air purge.
  • Trigger reaction speed to the extreme. All new extremely responsive & rebuildable trigger spool and lining.
  • Extreme finishing: The all new diamond finished chambers provide superior scratch resistance and extended operating times.


Maximum Working Pressure: 3,500 psi (245 Bar)

Air Pressure: 90-125 psi (6.2-8.6 Bar)

Maximum Output (1:1 ratio): 50 lb/min (22.7 L/min)

Minimum Output (1:1 ratio): 3.3 lb/min (1.55 L/min)

Opening Force @ 110 psi (8 Bar): 200 lb (91 kg)

Closing Force @ 110 psi (8 Bar): 200 lb (91 kg)

Weight (Not including Coupling Block): 2.4 lbs (1.1 kg)

Weight (Including Coupling Block): 3.1 lbs (1.4 kg)


PMC Xtreme Product Data Sheets

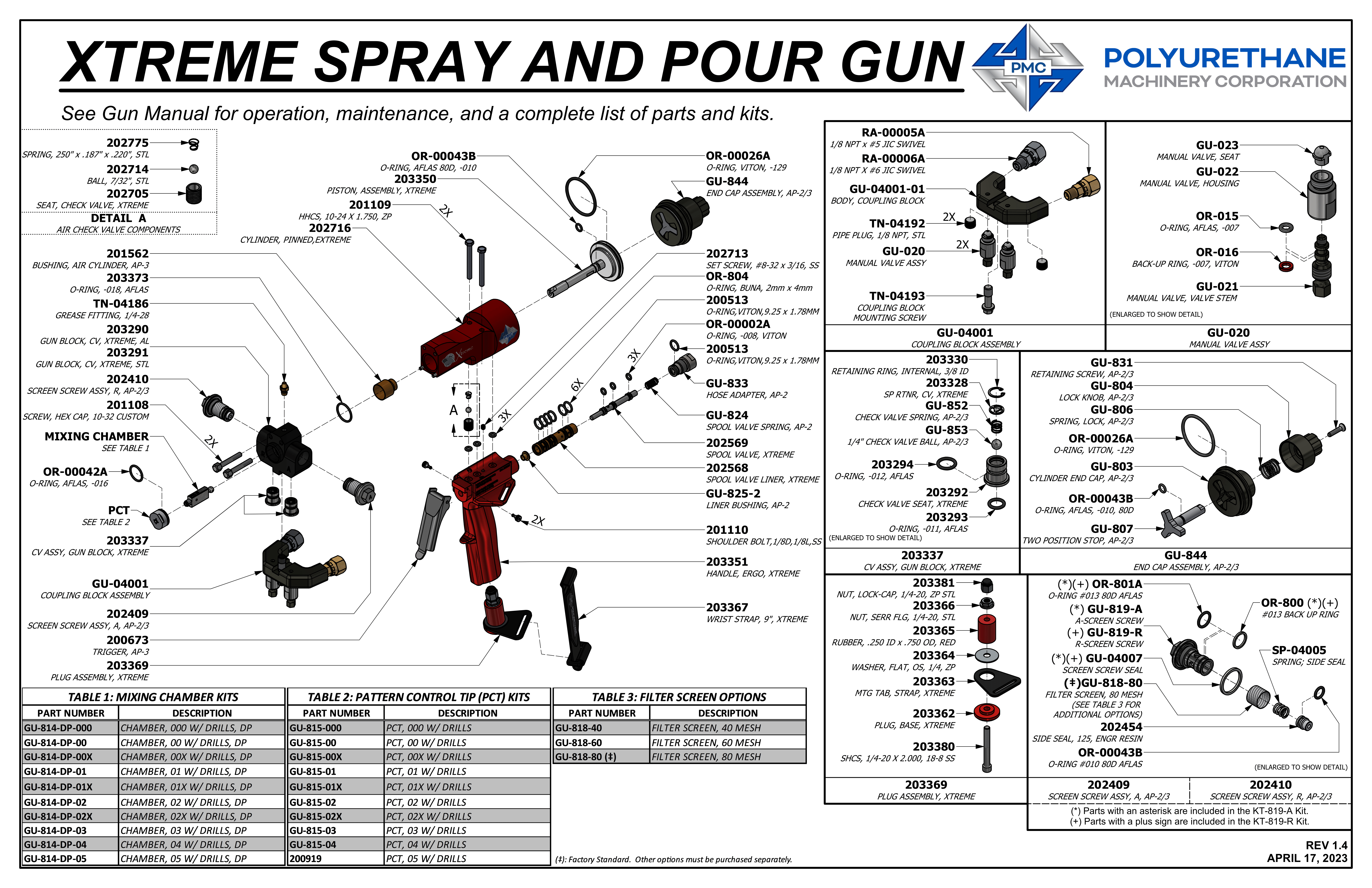

Click HERE for all PMC Extreme documentation, manuals, parts lists and diagrams.

Additional information

Weight 10 lbs
Dimensions 16 × 13 × 5 in

w/o Coupling Block: 2.4 lbs (1.1 kg)
with Coupling Block: 3.1 lbs (1.4 kg)

Maximum Working Pressure

3,500 psi (245 bar)

Minimum Air Pressure

90 psi (6.2 bar)

Maximum Air Pressure

125 psi (8.6 bar)

Maximum Output

50 lbs/min (22.7 kg)

Minimum Output

3.3 lbs/min (1.5 kg)


7” (17.78cm)


7.5” (19cm)


3” (7.6cm)
