PMC PX-7 1/90 MECHANICAL PURGE | 200561

$2,600.00

PX-7 1/90 Mechanical Purge Gun | PX-7 incorporates a valving rod to mechanically purge the mixed material from the mixing module at the end of each shot; eliminates the need for solvent flushing or air purge.

FINANCING AVAILABLE

Description

PX-7 1/90 Mechanical Purge Gun

PX-7 incorporates a valving rod to mechanically purge the mixed material from the mixing
module at the end of each shot; eliminates the need for solvent flushing or air purge.

Video

Product Data & Resources

All PMC PX-7 documentation, manuals and resources available HERE.
Below the most important manuals provided by the manufacturer:

PMC PX-7 | Service Manual >

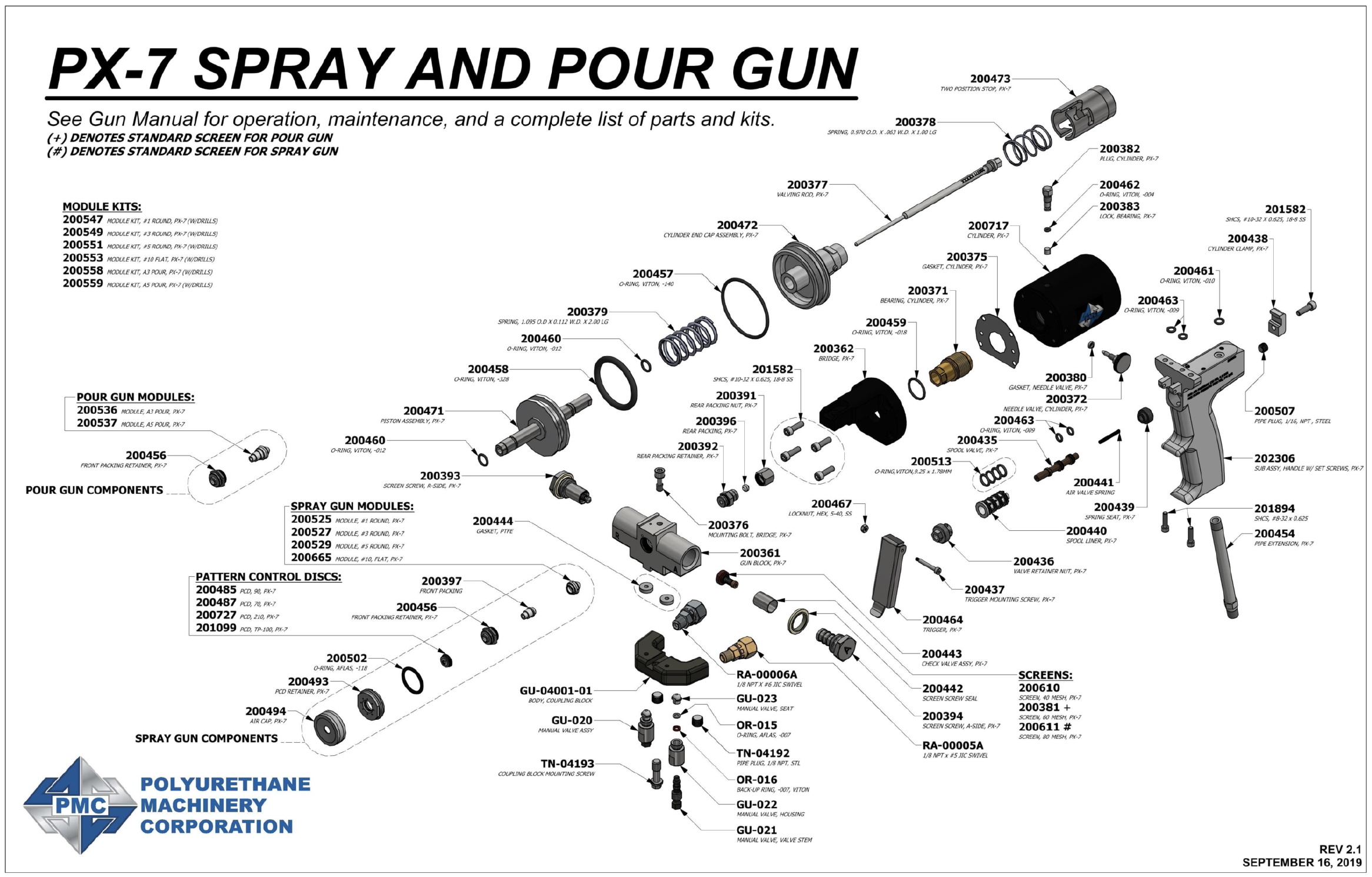

PMC PX-7 | Parts Indicator (Exploded View) >

Additional information

Weight10 lbs
Dimensions16 × 13 × 5 in
Weight

w/o Coupling Block: 4.3 lbs (1.95 kg)
with Coupling Block: 5.0 lbs (2.27 kg)

Maximum Working Pressure

3,500 psi (245 bar)

Maximum Air Pressure

125 psi (8.6 bar)

Maximum Output

(1:1 Ratio)
40 lbs per minute (18 kg)

Minimum Output

(1:1 Ratio)
3.3 lbs per minute (1.5 kg)

Height

9” (23cm)

Width

9.5” (24cm)

Depth

6.5” (11cm)
